BLA 600

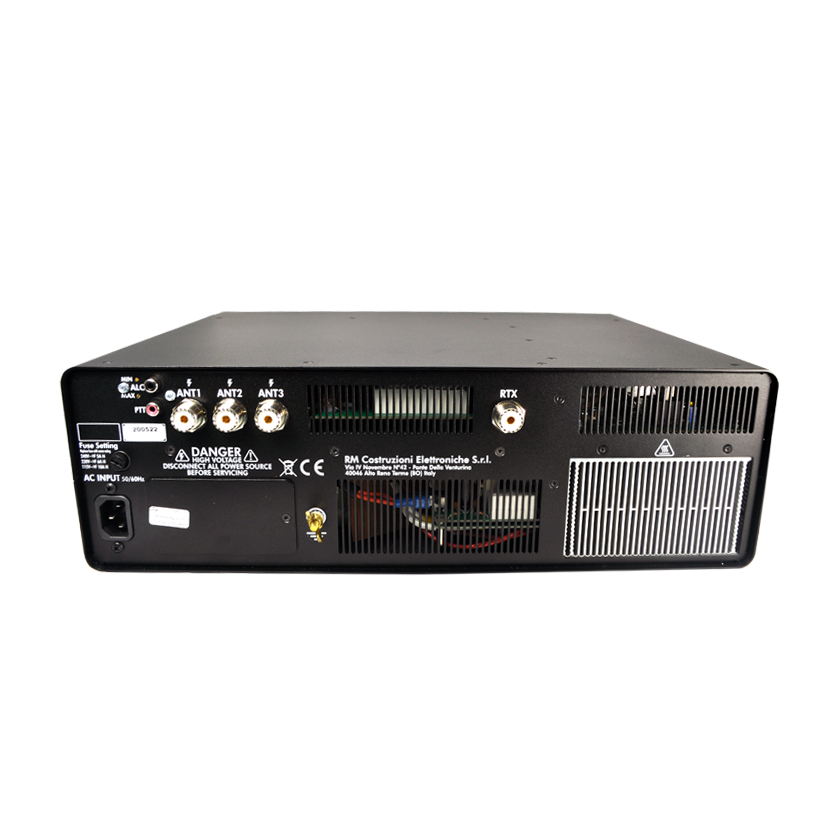

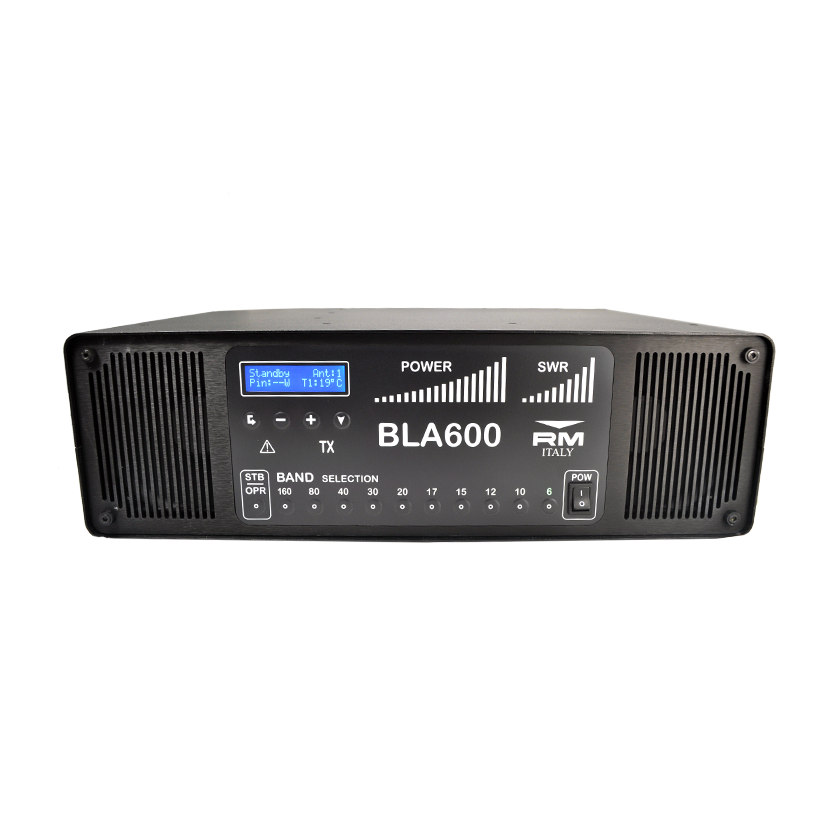

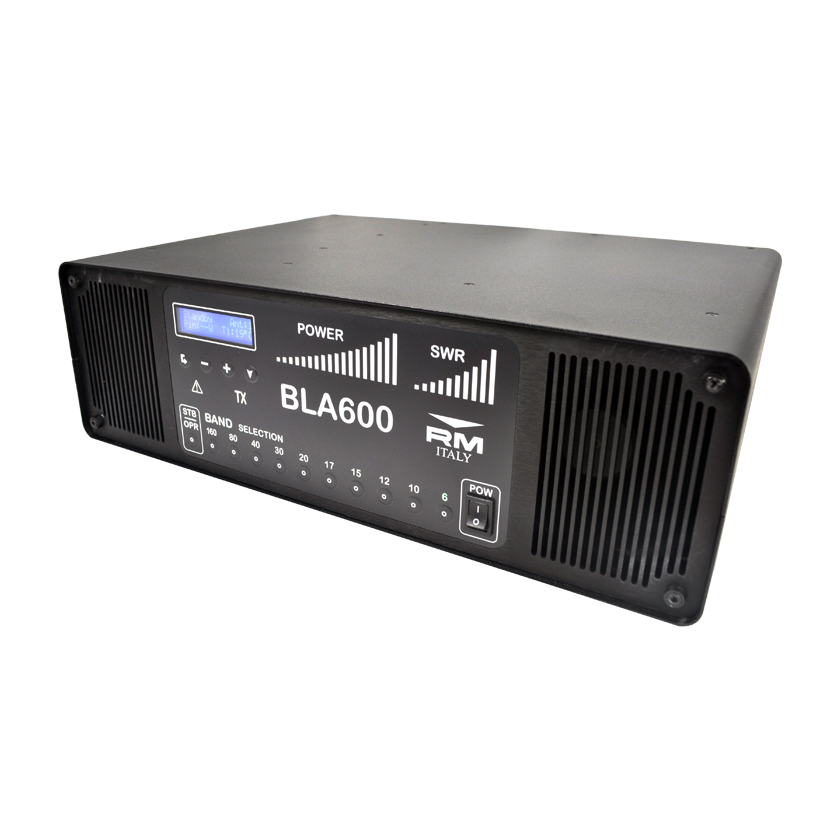

The BLA 600 is a  230Vac amplifier, (configurable also for 115 and 240 Vac), The BLA600 is a 500W solid state linear amplifier compatible with all modern transceivers. It features automatic band selection. HF & 6m coverage, 3 antenna outputs that can be assigned by the user to one or more bands. This amplifier features an illuminated display that shows the operating status, and two cooling fans located in the front of the amplifier.



Technical Specifications :

  • Frequency: : 1.8-30 MHz & 50-54 MHz
  • Power Supply: : 110 – 230 – 240 Vac (Configurable)
  • Input Power: 20-25W for 500W O/P 80-10m – 30-40W for 500W O/P 160m & 6m
  • Output Power: 500W+ PEP P1dB
  • Input VSWR: 1.1-1.5:1
  • Dimensions: L 430 W 324 H 142 mm
  • Weight: 21.5 Kg
