HLA 150 V BLACK

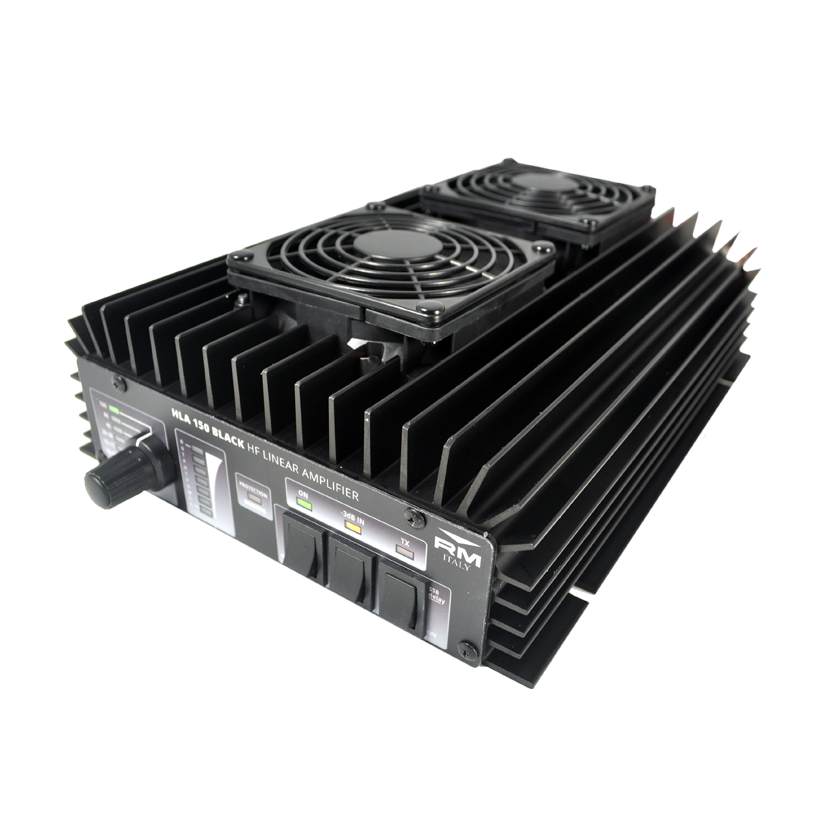

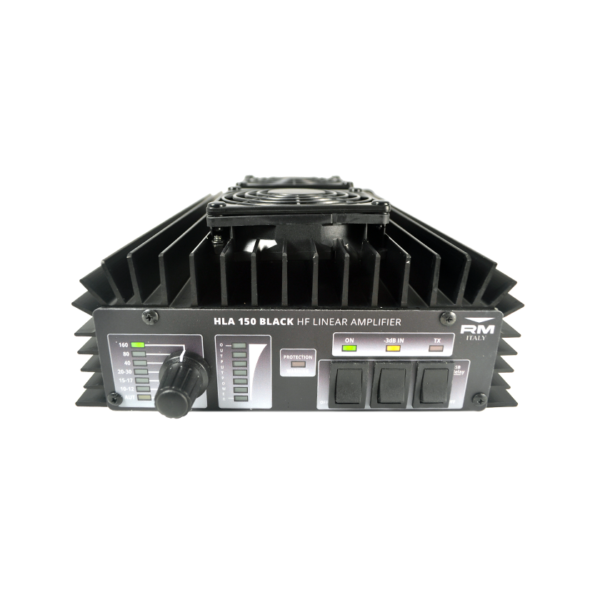

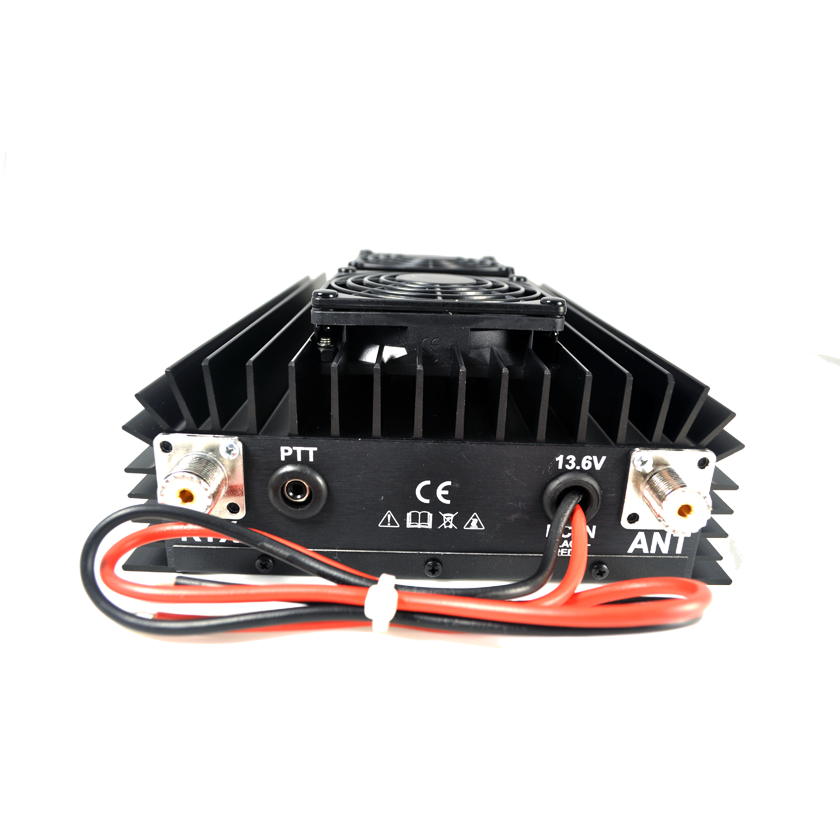

The HLA 150 V Black is a 150Wmax 12V linear amplifier for use on all HF bands from 1.8 to 30 MHz, with a drive power of 1 – 10 W. The HLA 150 V Black features six Low Pass Filters , switched automatically by a microprocessor, or set manually using the front panel control. It also features an LED power meter, 3dB input attenuator and VOX or PTT input RTX control. The V version comes with two 80mm fans attached to the heatsink.
Technical Specifications :
- Frequency: 1.8—30 MHz (160m to 10m bands)
- Power Supply: 13VDC+/- 1V 30A
- Input Power: 1-10W max (All modes)
- Output Power: 150W max
- Input VSWR: 1.1-1.5:1
- Fuse: 2×12.5A Fast 5x20mm
- Dimensions: L 300 W 190 H 83 mm
- Weight: 2 Kg
