HLA 305 V

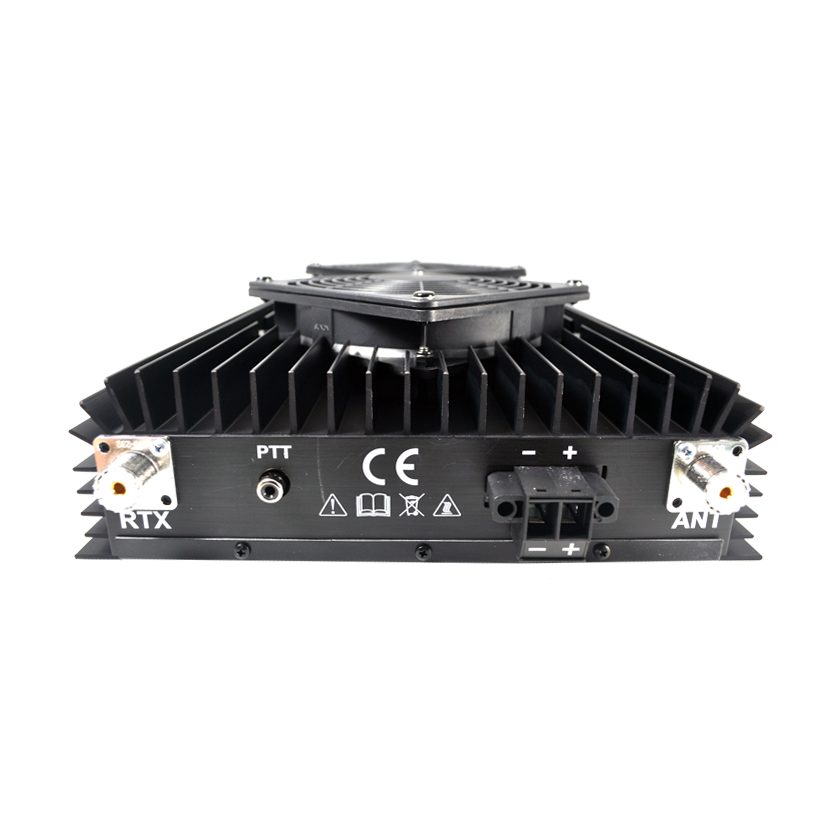

The HLA 305 V is a 12V linear amplifier for use on all HF bands from 1.5 to 30 MHz, with a drive power of 1 – 10 W. The HLA 305 V is equipped with six Low Pass Filters , switched automatically by a microprocessor, or set manually using the front panel control. The HLA 305 V also has an illuminated LCD display and twin 120mm cooling fans mounted to the heatsink.
Technical Specifications :
- Frequency: 1.5 ~ 30 MHz all amateur bands including WARC bands
- Power Supply: 13 Vcc ±2V
- Input Current: 45 A max
- Input Power: 1-10W (All modes)
- Output Power: 250W max
- Input VSWR: 1.1-1.5:1
- Dimensions: L 420 W 240 H 90 mm
- Weight: 4.200 Kg
