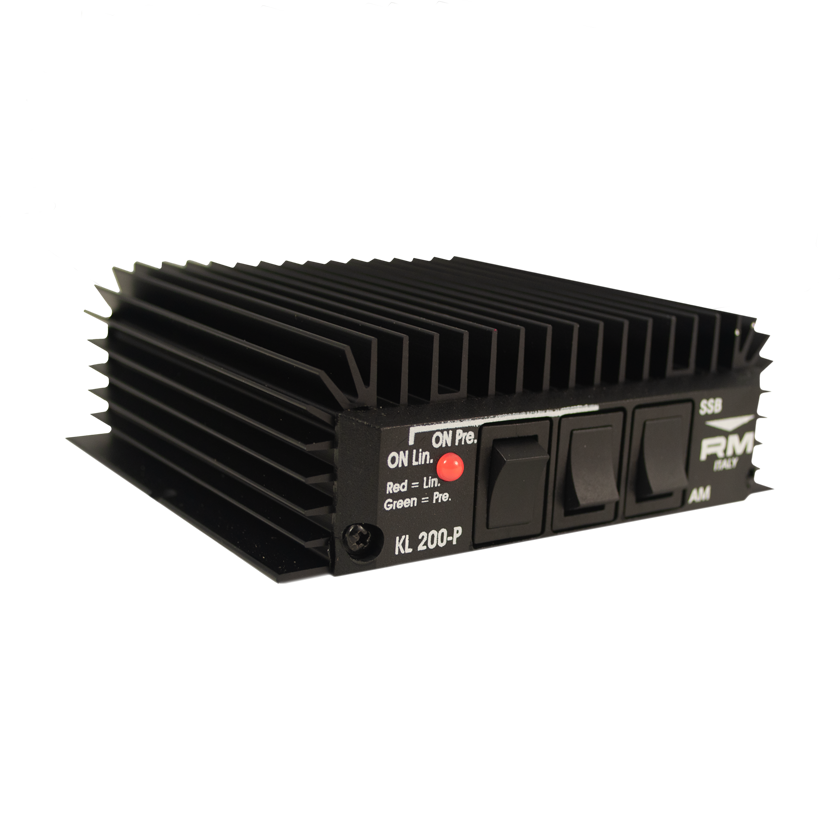

KL 200 P
The KL 200 P is a 12V linear amplifier for use in the frequency range 28 – 29.7 MHz, with a drive power of 1 to 5W in FM/AM mode, and 2.0 – 10W in SSB mode. The KL 200 P also features a 25dB RX preamplifier with electronic switching, which can be switched in or out via a front panel switch.
Technical Specifications :
- Frequency: 28 – 29.7 MHz
- Power Supply: 12 – 14 Vcc
- Input Current: 11A max
- Input Power: 1W – 5W / 2.0 – 10W SSB
- Output Power: 100W AM/ FM – 200W SSB
- Input VSWR: 1.1 – 1.5:1
- Mode AM – FM – SSB
- Fuse: 12A Fast 5×20mm
- Dimensions: L 125 W 120 H 40 mm
- Weight: 444 g
