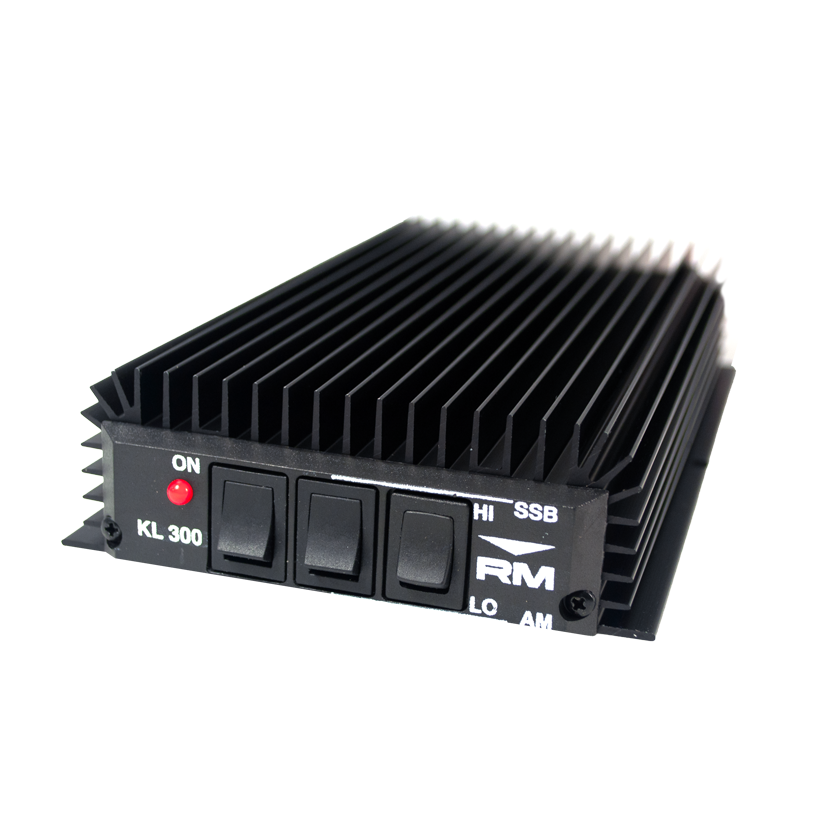

KL 300
The KL 300 is a 12V linear amplifier for use in the HF frequency range, with a drive power of 1 to 10W in FM/AM mode, and 2.0 – 20W in SSB mode.
Technical Specifications :
- Frequency: HF
- Power Supply: 12 – 14 Vcc
- Input Current: 20 A max
- Input Power: 1 – 10 W – 2 – 20 W SSB
- Output Power: 140W AM-FM – 250 W SSB
- Input VSWR: 1.1-1.5:1
- Fuse: 2x 12 A
- Dimensions: L 230 W 120 H 40 mm
- Weight: 853 g
Attachments
Related products

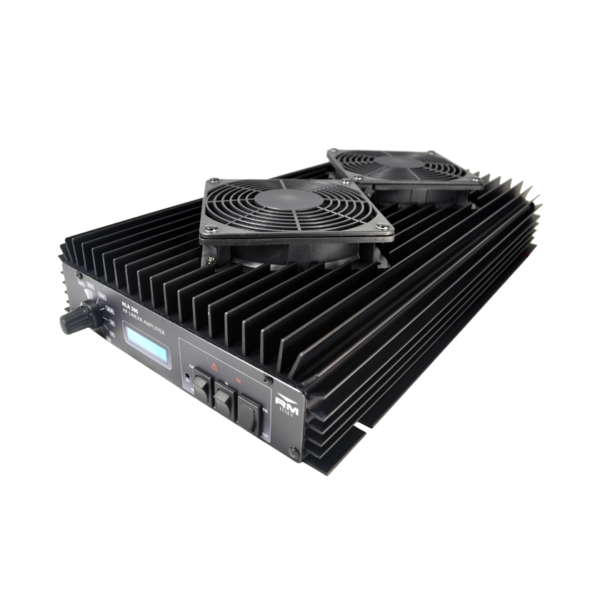

The HLA 305 V is a 12V linear amplifier for use on all HF bands from 1.5 to 30 MHz, with a drive power of 1 – 10 W. The HLA 305 V is equipped with six Low Pass Filters , switched automatically by a microprocessor, or set manually using the front panel control. The HLA 305 V also has an illuminated LCD display and twin 120mm cooling fans mounted to the heatsink.
