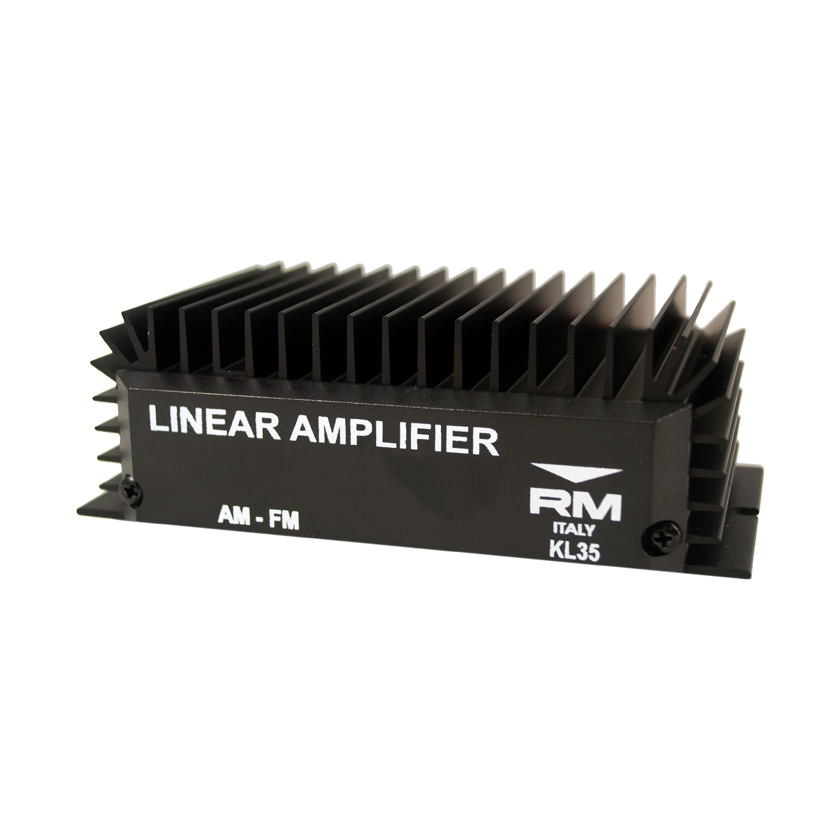

KL 35
The KL 35 is a 12V linear amplifier for use in the frequency range 28 – 29.7 MHz, with a drive power of 1 to 5 W.
Technical Specifications :
- Frequency: 28 – 29.7 MHz
- Power Supply: 12 – 14 Vcc
- Input Current: 4A max
- Input Power: 1.0-5W
- Output Power: 25 – 35 W
- Input VSWR: 1.1 – 1.5:1
- Mode : AM – FM
- Fuse: 5A rapido 5×20
- Dimensions: L 84 W 120 H 40 mm
- Weight: 280 g
