KL 505 V

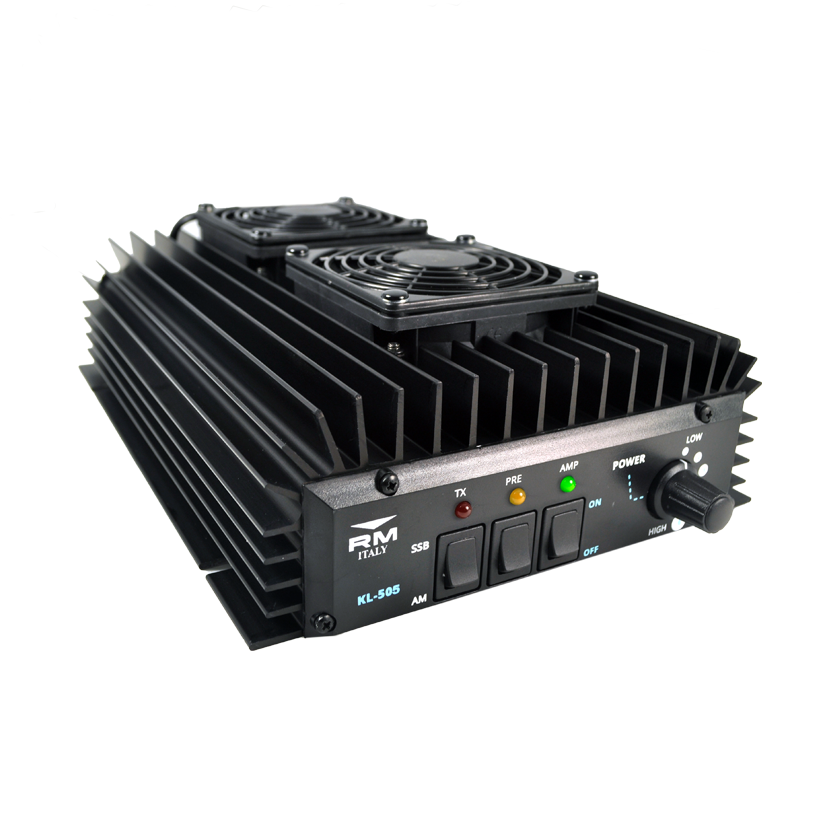

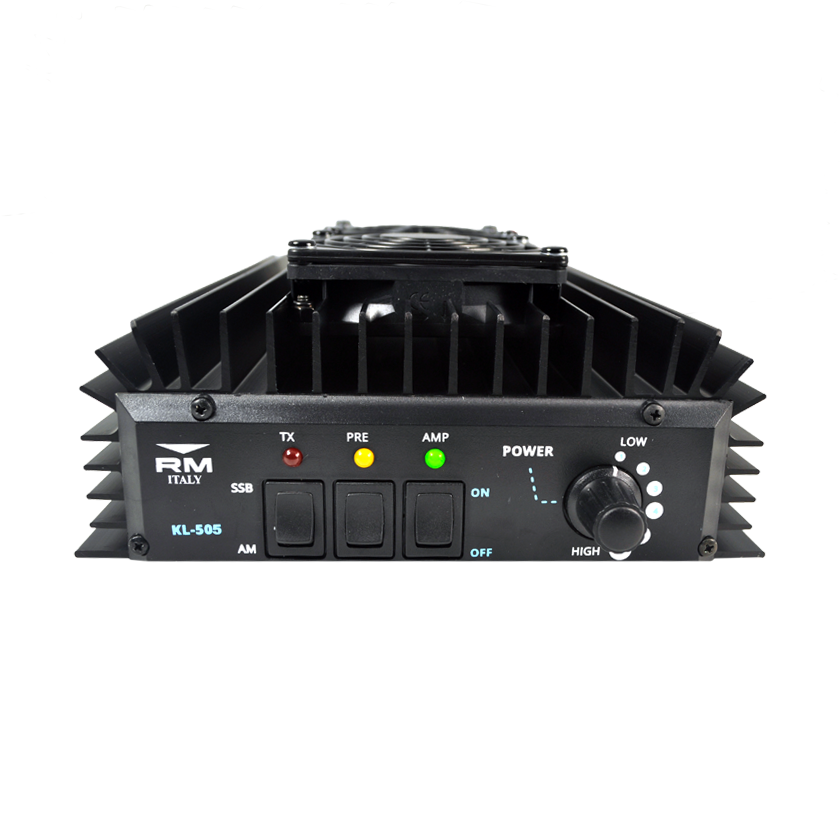

The KL 505 V is a 230Wmax 12V linear amplifier for use on the 10m Amateur Band, (or other HF bands with the use of a suitable Low Pass Filter). It requires a drive power of 1 to 10W in all modes. The KL 505 V features a six position output power selector via a front panel control and a RX preamplifier with electronic switching, which can be activated via a switch on the front panel. The V version comes with two 80mm heatsink mounted fans.
Technical Specifications :
- Frequency: 10m Amateur Band, (1.8-30MHz with LPF)
- Power Supply: 13.8VDC+/- 1V 50A
- Input Current: 35 A max
- Input Power: 1-10W max (All modes)
- Output Power: 230W max
- Input VSWR: 1.1-1.5:1
- Fuse: 3x12A Fast 5x20mm
- Dimensions: L 300 W 190 H 83 mm
- Weight: 2.200 g
Attachments
Related products
The KL 405 is a 180Wmax 12V linear amplifier for use on the 10m Amateur Band, (or other HF bands with the use of a suitable Low Pass Filter). It requires a drive power of 1 to 10W in all modes. The KL 405 features a six position output power selector via a front panel control and a RX preamplifier with electronic switching, which can be activated via a switch on the front panel.
The HLA 150 Black is a 150Wmax 12V linear amplifier for use on all HF bands from 1.8 to 30 MHz, with a drive power of 1 – 10 W. The HLA 150 Black features six Low Pass Filters , switched automatically by a microprocessor, or set manually using the front panel control. It also features an LED power meter, 3dB input attenuator and VOX or PTT input RTX control.
The KL 703 is a 12V linear amplifier for use in the 25 – 30 MHz frequency range, with a drive power of 1 to 35 W in all modes. The KL 703 has a three-position output power selector via a switch on the front panel, two heatsink cooling fans and a RX preamplifier with electronic switching, which can be activated via a switch on the front panel.

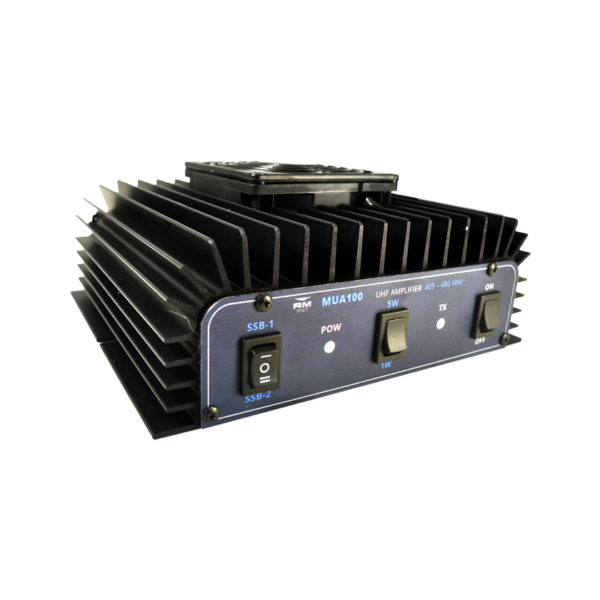

The MUA100 is a 100W wideband 12V compact linear amplifier for the UHF band (405-480 MHz). Ideal for low power portable transceivers, from 1 to 5W. It features automatic RTX switching (no PTT is required, however there is also a PTT input recommended for SSB use). The MUA is protected from excessive antenna SWR and equipped with a cooling fan.
