KL 703

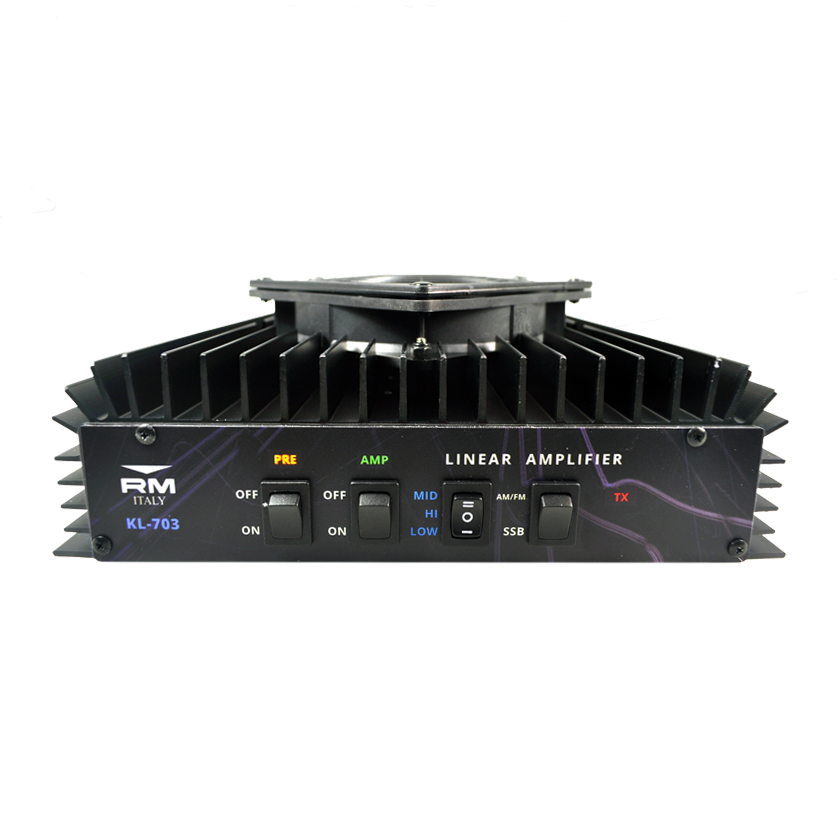

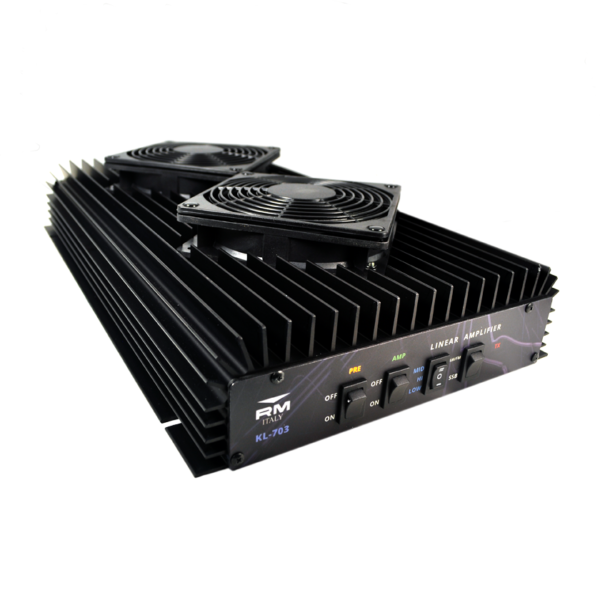

The KL 703 is a 12V linear amplifier for use in the 25 – 30 MHz frequency range, with a drive power of 1 to 35 W in all modes. The KL 703 has a three-position output power selector via a switch on the front panel, two heatsink cooling fans and a RX preamplifier with electronic switching, which can be activated via a switch on the front panel.
Technical Specifications :
- Frequency: 25 – 30 MHz
- Power Supply : 13.8VDC+/- 1V 60A
- Input Current: 50A max
- Input Power: 1W – 35 W All modes
- Output Power: 500W max
- Input VSWR: 1.1 – 1.5:1
- Mode: AM – FM – SSB – CW
- Fuse: 4x 15A ( Auto Fuse )
- Dimensions : L 420 W 240 H 90 mm
- Weight: 4.250 Kg
