KL 805

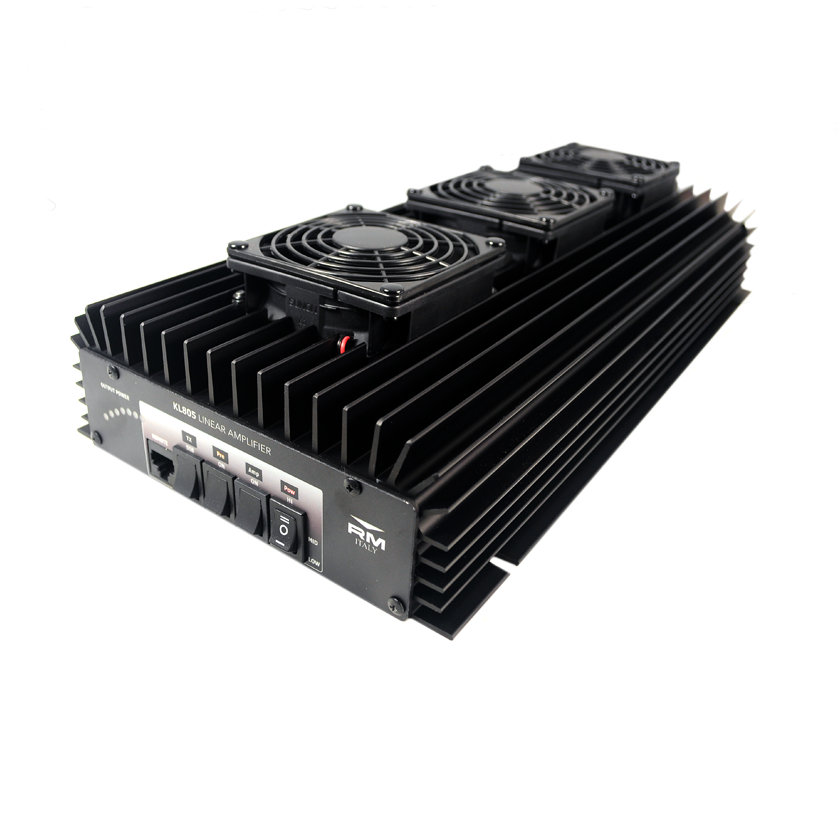

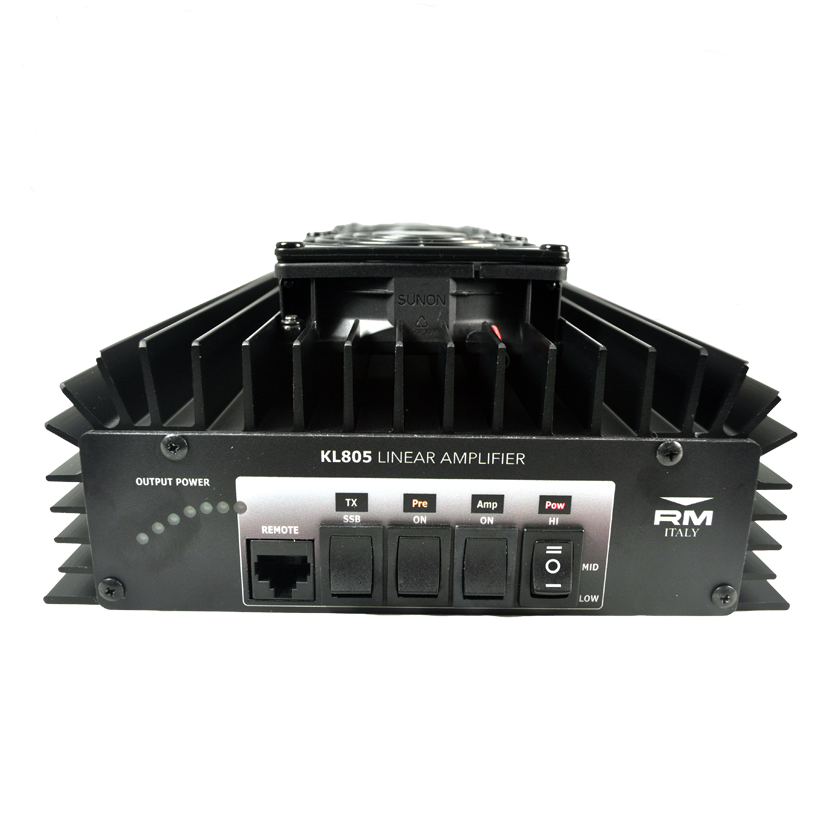

The KL 805 is a 24V linear amplifier for use in the frequency range 25 – 30 MHz, with a drive power of 1 to 15 W in all modes. The KL 805 has a RX preamplifier with electronic switching, a three-position power selector via a switch on the front, a connector for remote control, and three cooling fans. On the front there is also a LED wattmeter to indicate the output power.
Technical Specifications :
- Frequency: 25 – 30 MHz
- Power Supply: 22 – 30 Vdc ( 24 V )
- Input Current: 35A max
- Input Power: 1W – 15 W
- Output Power: 600W max
- Input VSWR: 1.1 – 1.5:1
- Mode : AM – FM – SSB – CW
- Fuse: 3x 12A Fast 5×20mm
- Dimensions: L 420 W 190 H 90 mm
- Weight : 3.390 Kg
