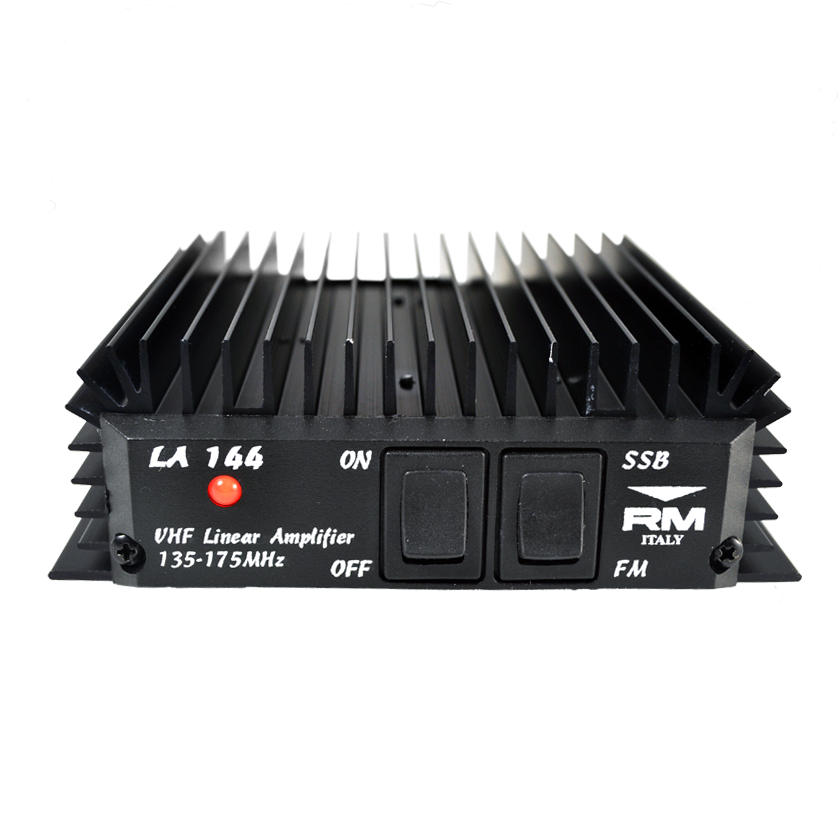

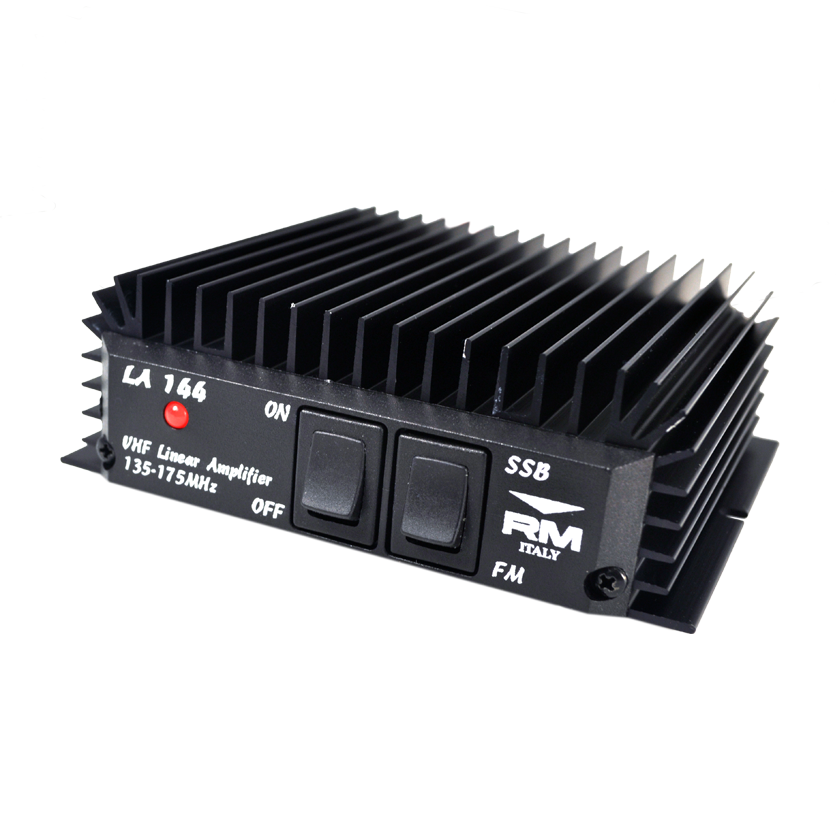

LA 144
The LA 144 is a 60W 12V linear amplifier for use in the VHF 135 – 175 MHz band, requiring an input power of 0.5 – 4 W maximum.
Technical Specifications :
- Frequency: 135-175MHz continuous
- Power Supply: : 12-14Vdc
- Input Power: 0.5-4W max
- Output Power: 60W
- Input VSWR: 1.1-1.5:1
- Fuse: 12 A (5x20mm Fast)
- Dimensions: L 125 W 120 H 40 mm
- Weight: 470 g
