LA 250 V

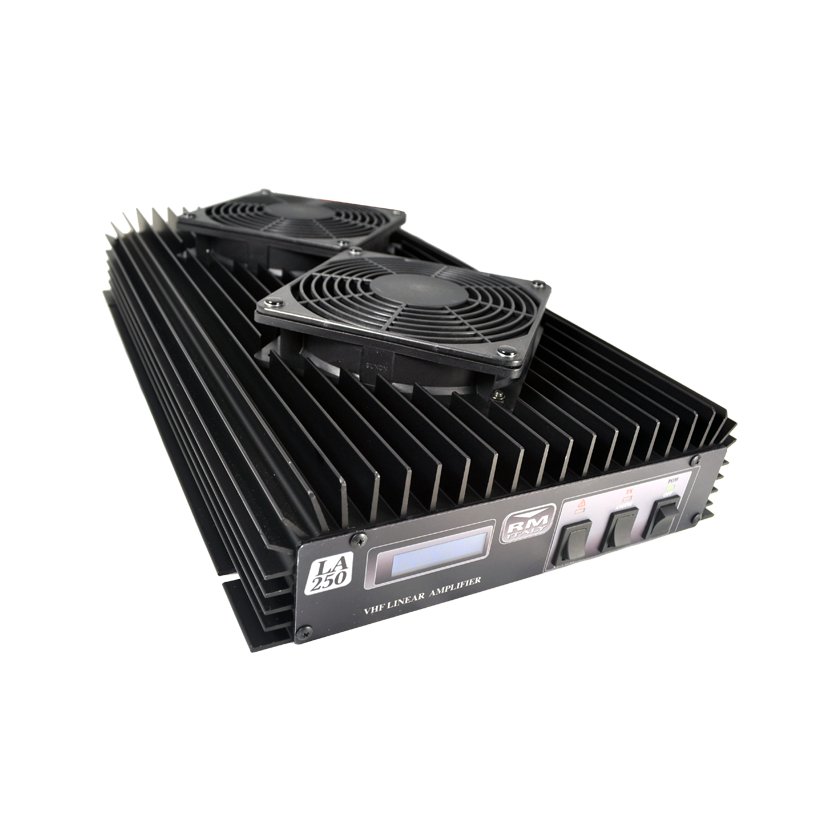

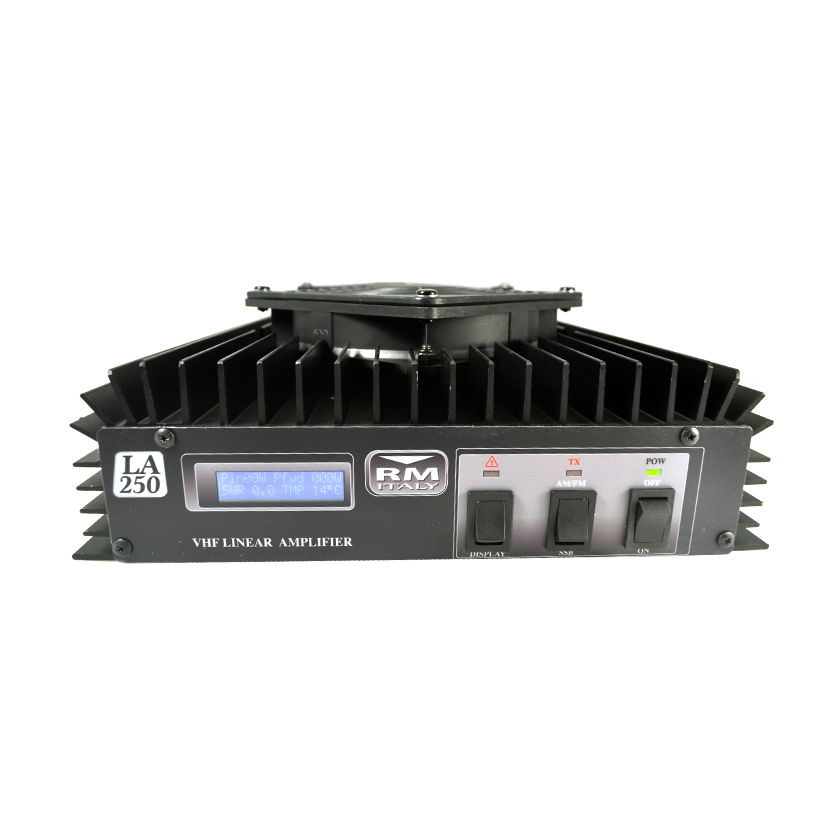

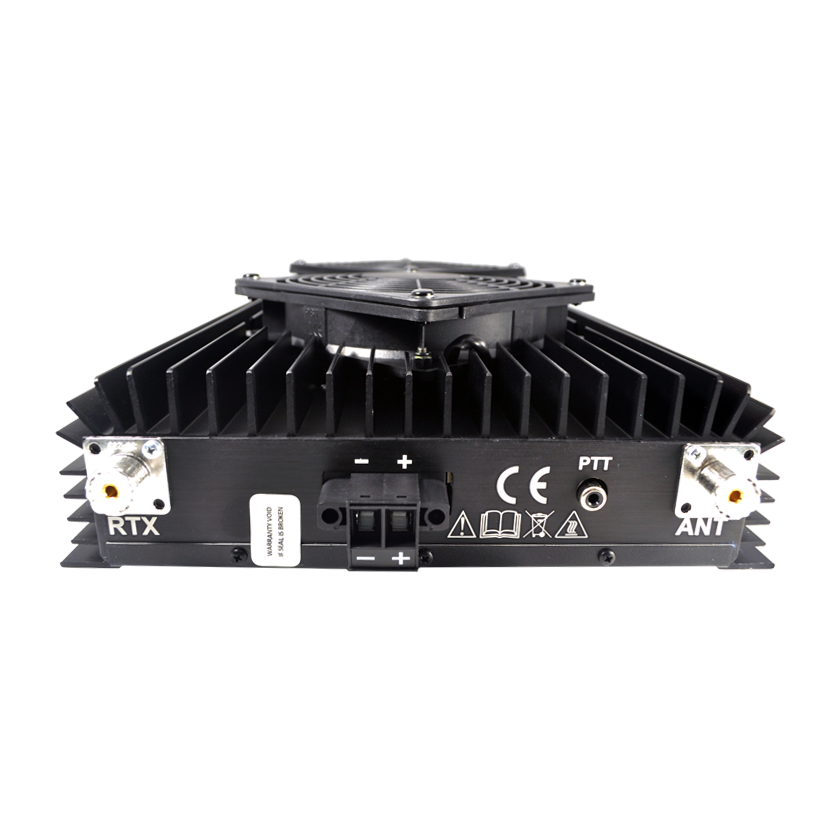

The LA 250 V is a 200W 12V linear amplifier for use in the VHF 140 – 150 MHz, (2m), band, with an input power of 1 – 15 W. The LA 250 V has an illuminated LCD display where all the parameters of the apparatus are indicated. It also features protection for excessive antenna VSWR, excessive input power and over temperature. The V model features two 120mm cooling fans attached to the heatsink.
Technical Specifications :
- Frequency: 140—150 MHz (2m Amateur VHF Band)
- Power Supply: 13VDC+/- 1V 40A
- Input Power: 1-20W max (All modes)
- Output Power: 200W @1dB Gain Compression
- Input VSWR: 1.1-1.5:1
- Fuse: 3x10A (5x20mm Fast)
- Dimensions: L 420 W 240 H 90 mm
- Weight: 4.250 Kg
