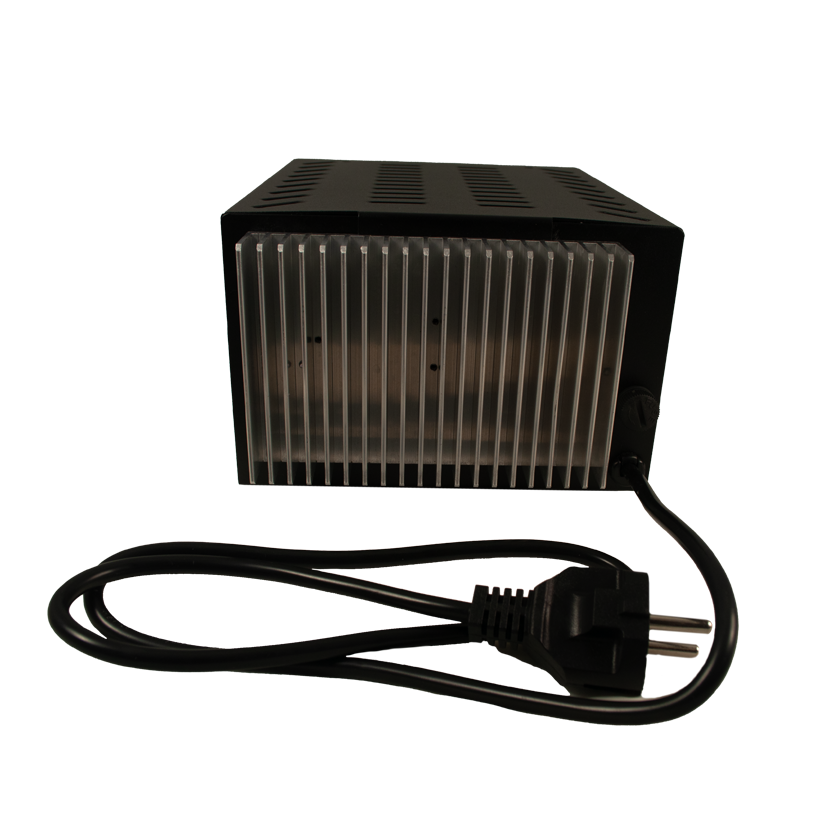

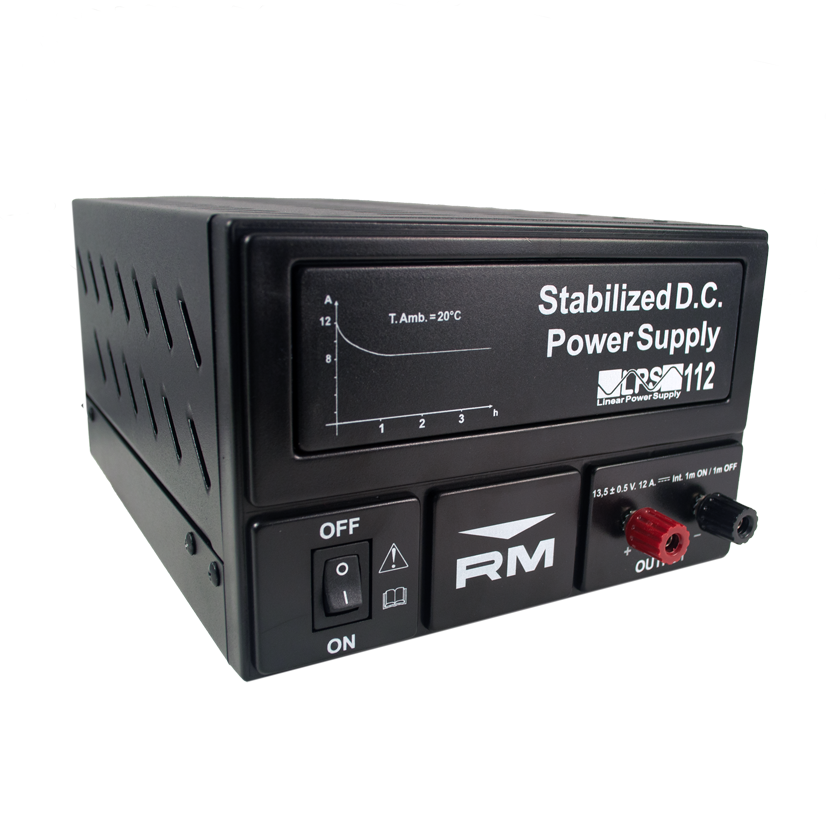

LPS 112
LPS 112 is a reliable linear high quality fixed output voltage stabilized power supply, suitable for use with all electronic and telecommunication devices.
Supplied with 230V power cable.
Technical Specifications :
- Supply : 230V
- Output Voltage : 13,5V ± 0.5V
- Continuous Load : 9 A
- Max Load : 12 A
- Fuse: 2 A Fast 5×20mm
- Dimensions : L 257mm W 170mm H 115mm
- Weight : 4.2 Kg.
