LPS 120 S

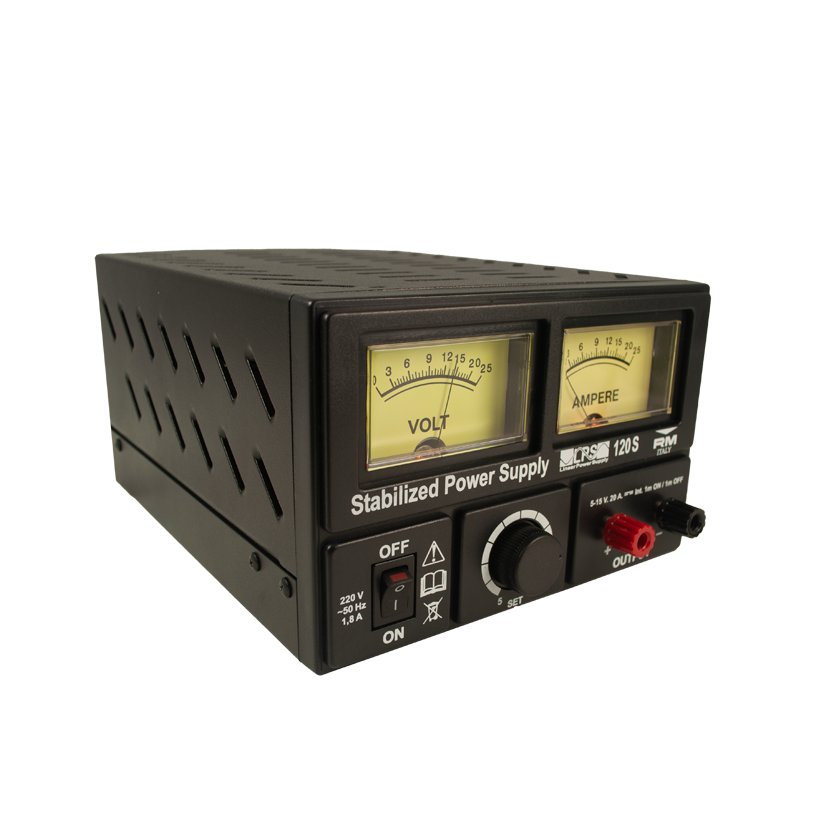

LPS 120 S is a reliable linear high quality power supply with a stabilised variable output voltage, suitable for use with all electronic and telecommunication devices. It is equipped with two illuminated instruments (Voltmeter and Ammeter) and a knob for adjusting the output voltage.
Comes with 230V power cable.
Technical Specifications :
- Supply : 230V
- Output Voltage : 13,5V ± 0.5V
- Continuous Current : 14 A
- Max Current: 20 A
- Fuse: 2 A Fast 5×20mm
- Dimensions :: L 283mm W 170mm H 115mm
- Weight : 4.9 Kg.
