MUA 100

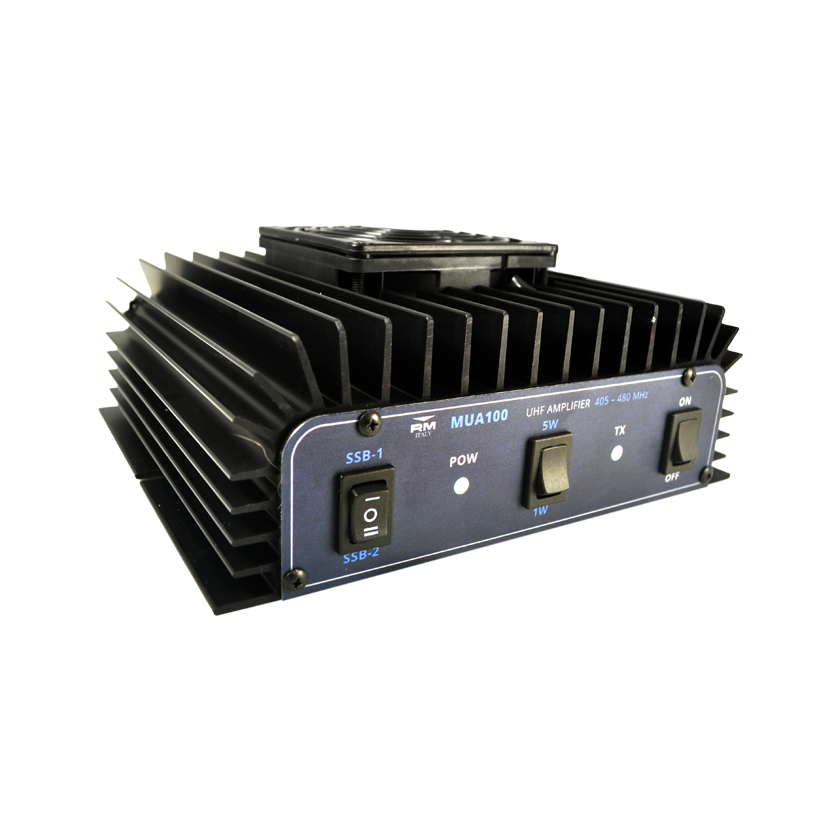

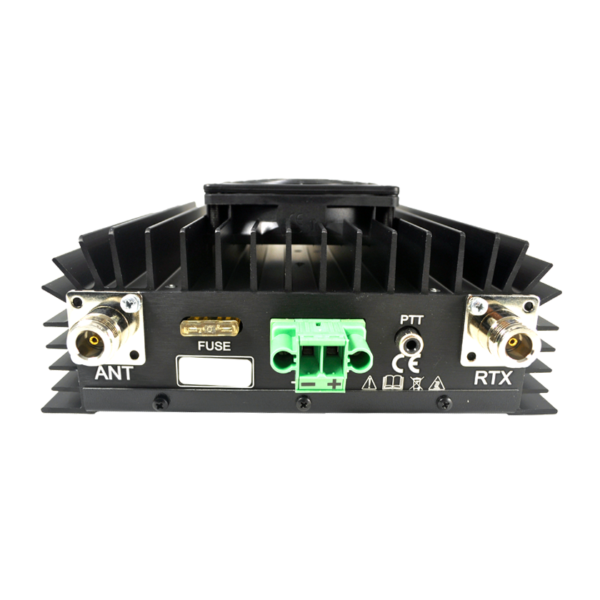

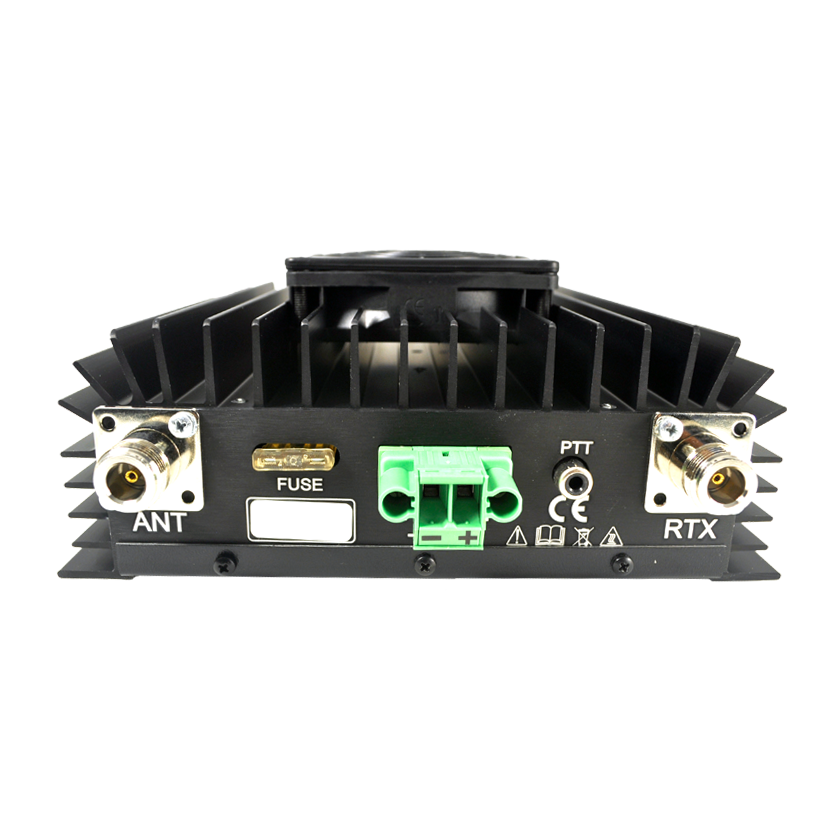

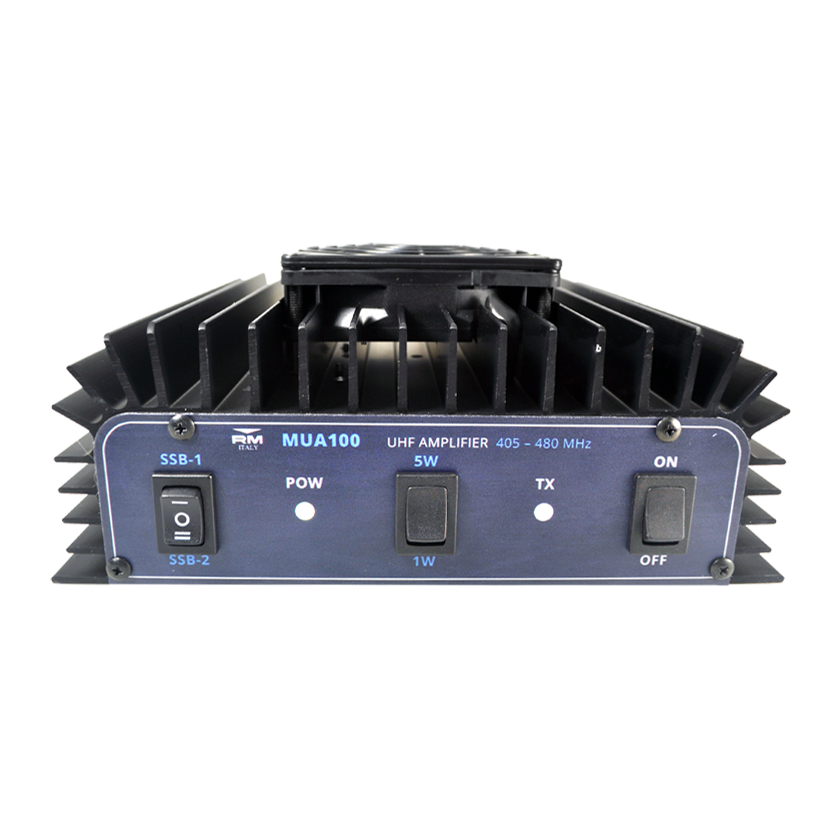

The MUA100 is a 100W wideband 12V compact linear amplifier for the UHF band (405-480 MHz). Ideal for low power portable transceivers, from 1 to 5W. It features automatic RTX switching (no PTT is required, however there is also a PTT input recommended for SSB use). The MUA is protected from excessive antenna SWR and equipped with a cooling fan.
Technical Specifications :
- Frequency: : 405-480MHz continuous
- Power Supply: : 12-16 Vdc
- Input Power: 1.0 -5W max
- Output Power: 100W nominal
- Input VSWR: 1.1-1.5:1
- Fuse: 25 A (Automotive)
- Dimensions: L 190 W 190 H 83 mm
- Weight: 1.5 Kg
